Systems and Dependencies

Critical Systems

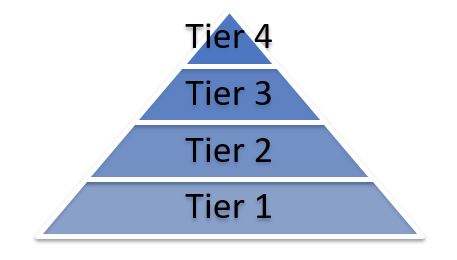

The University has developed a Tiering system classification to define business criticality for its IT systems, applications, and infrastructure. Tier 1 includes the core IT services, applications and infrastructure required to support the University. Tier 2 to 4 includes less critical IT systems in decreasing order of criticality.

Dependencies

IT systems, applications and infrastructure that are not deemed critical for The University’s business functions will have to be considered as part of The University’s recovery processes as these may have interdependencies that need to be considered to ensure full recovery and functionality of critical systems. The following table identifies IT systems, applications, and infrastructure Interdependencies that should be considered as part of IT Disaster recovery processes, assuming AD, VMware and networking/Internet are operational.

View critical IT systems, applications. infrastructure and interdependencies list

The following table outlines the critical IT systems, applications and infrastructure identified by The University (Tier 1 criticality) as well as interdependencies. Refer to The University’s list of Critical Business Applications for further details on these systems and other tiers.

#Critical IT SystemsBusiness FunctionsMTO*RTORPOVendorInterdependencies
1 Blackboard Learning Management Up to 24 hrs 2 hrs 2 hrs Blackboard SaaS service
2 Exchange Email Up to 24 hrs 2 hrs 2 hrs Microsoft Exchange Servers
3 Sophos VPN, Security, Anti-Virus Up to 24 hrs 1 hr 24 hrs Sophos Physical appliance
4 PeopleSoft HCM Human Resources, Payroll Up to 24 hrs 1 hr 24 hrs Deloitte Talend
5 PeopleSoft Finance Finance Up to 24 hrs 1 hr 24 hrs Deloitte Talend
6 PowerPro VET Management system Up to 48 hrs 12 hr 48 hrs UNDA IT N/A
7 PeopleSoft Campus Student Management Up to 24 hrs 1 hr 24 hrs Deloitte Talend
8 Cisco, Avaya, HP PABX, Network Switching Up to 24 hrs 1 hr 24 hrs Cisco, Telstra, HP N/A
9 MS ADFS, MS LDAP Authentication Up to 24 hrs 1 hr 24 hrs Microsoft N/A
10 Thycotic Secret Server Privileged Account Management Up to 24 hrs 1 hr 24 hrs Thycotic N/A
11 File and Data Storage: NFS, OneDrive, Next Cloud File and Data Storage Up to 24 hrs 1 hr 24 hrs UNDA IT N/A
12 Zoom, MS Teams, Polycom, Fusion Teaching and Collaboration, Venue Support, AV Event Management Up to 24 hrs per SLA per SLA Zoom, Microsoft, Polycom, Creston ADFS
13 Talend, ActiveMQ Integration Services Up to 24 hrs per SLA per SLA Talend, ActiveMQN/A

Non-critical Systems

Non-critical IT systems, applications and infrastructure (Tiers 2 to 4 criticality) include IT systems and applications the University can function without for a longer period of time [i.e. 1 to 2 days]. Refer to Critical Business Applications for non-critical systems defined.
